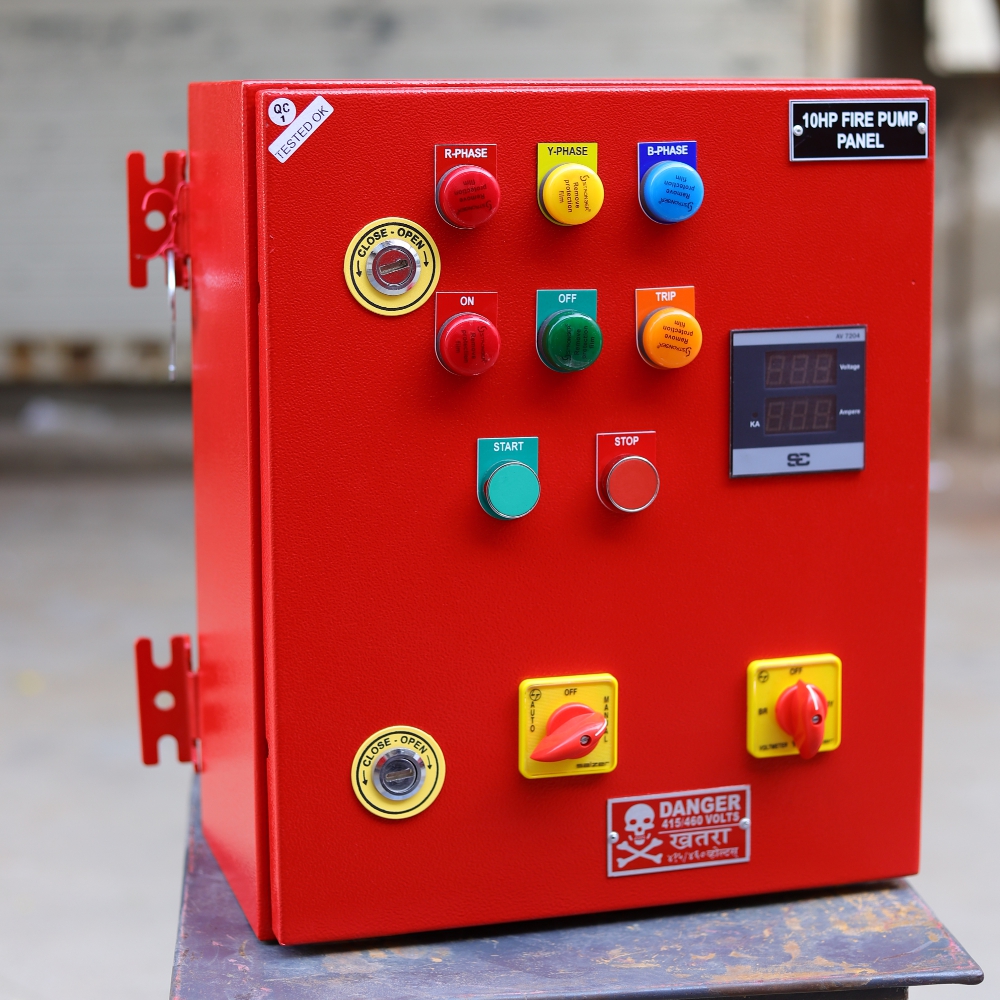

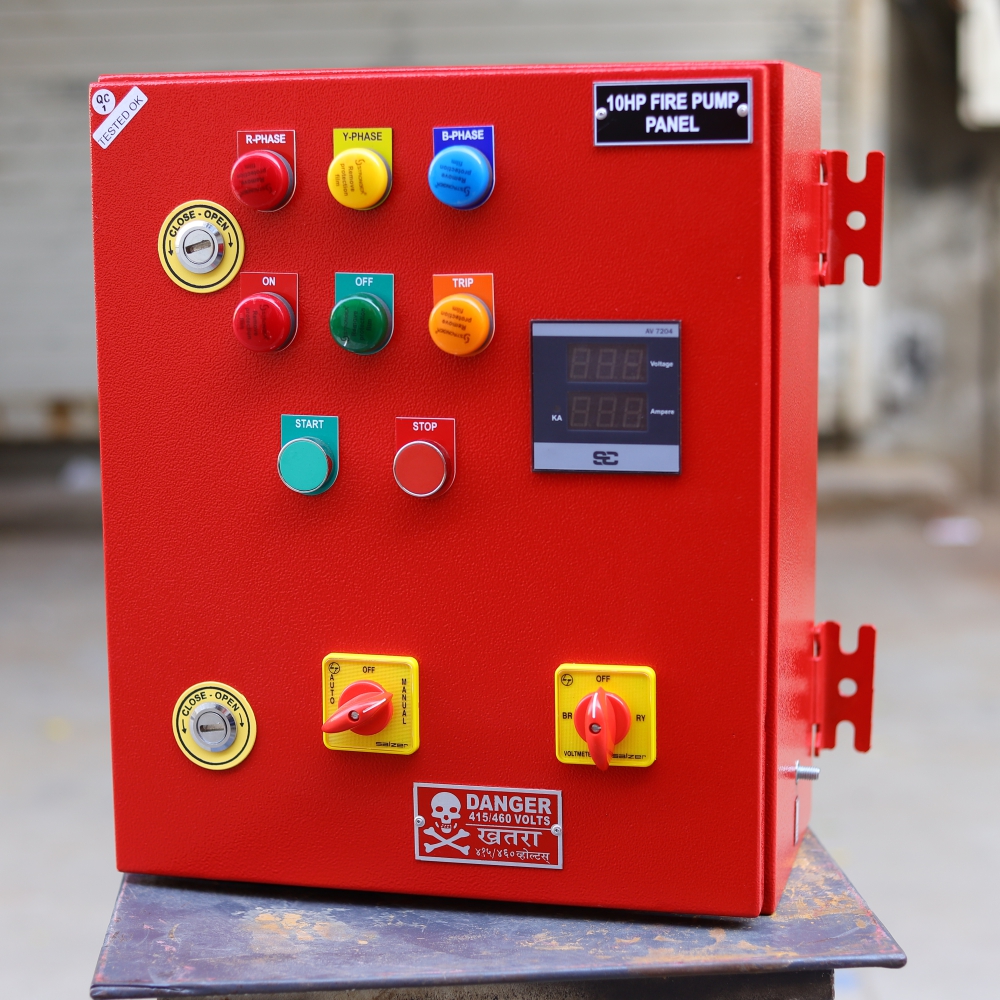

SINGLE PUMP(DOL) CONTROL PANEL


The Single Pump (DOL) Control Panel is a reliable and user-friendly electrical panel designed to operate a single pump using a Direct-On-Line starter. It ensures safe, efficient, and smooth starting of the pump motor, protecting it from overloads and voltage fluctuations. Widely used in residential, industrial, and agricultural pumping systems, this panel is equipped with high-quality components, indicator lamps, MCB/MCCB, and protective relays for enhanced safety. Compact in design and easy to install, it offers durability, low maintenance, and efficient performance, making it an ideal choice for water supply, irrigation, and industrial pumping applications.

Key Features

  • Compact and durable design suitable for long-term use
  • Direct-On-Line (DOL) starter for smooth and reliable pump operation
  • Built-in protection against overload, short-circuit, and voltage fluctuations
  • High-quality components including MCB/MCCB, contactors, and relays

Technical Specifications

Input Supply 415 V AC, 3-Phase, 50 Hz (±10% V, ±5% Hz)
Motor Rating Range Single Pump: up to 30 kW (Direct-On-Line Starter)
Protections Overload, short-circuit, phase failure/reversal, dry-run (optional)
Enclosure & IP Wall-mounted, powder-coated MS; IP54 (IP55 optional)
