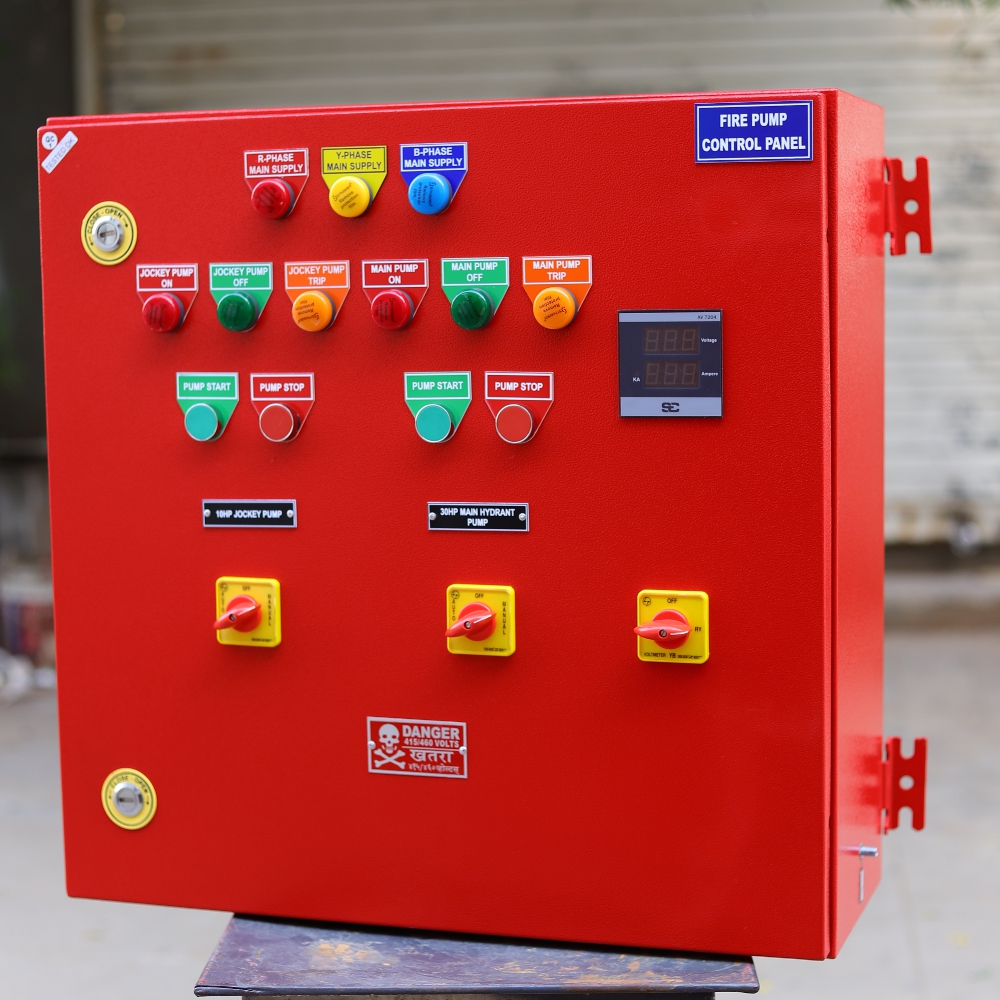

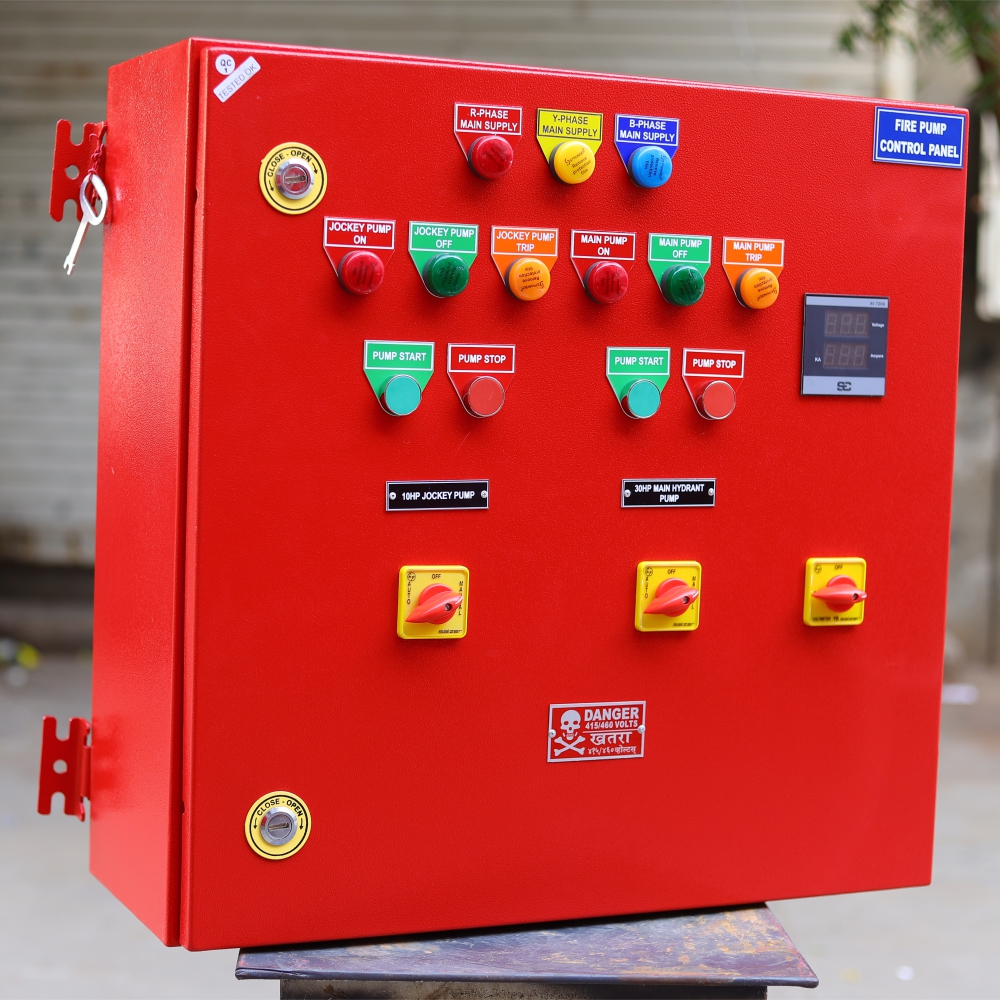

COMBINE PUMP(MAIN+JOCKEY) PANEL-WALL MOUNTED


The COMBINE PUMP (Main + Jockey) Panel – Wall Mounted is a compact, reliable, and user-friendly control system designed to operate and monitor both the main fire pump and the jockey pump within a single enclosure. It is specifically engineered for fire-fighting and industrial applications where space optimization, safety, and performance are critical. With its wall-mounted design, it provides ease of installation, better accessibility, and a neat appearance, making it suitable for a wide range of commercial, industrial, and residential projects.

Key Features

  • Integrated control for both main and jockey pumps
  • Compact wall-mounted design for space efficiency
  • Automatic operation to maintain system pressure
  • Built-in overload and short-circuit protection
  • Durable powder-coated enclosure for long life

Technical Specifications

Input Supply 415 V AC, 3-Phase, 50 Hz (±10% V, ±5% Hz)
Motor Rating Range Main Pump: up to 75 kW (DOL / Star-Delta)
Jockey Pump: up to 5.5 kW (DOL)
Control Logic Automatic operation via pressure switch with Manual/Auto selector and system monitoring
Protections Overload, short-circuit, phase failure/reversal, dry-run (optional)
Enclosure & IP Wall-mounted, powder-coated MS; IP54 (IP55 optional)
